Tooling for Wire EDM

With a Macro chuck as basic equipment on the machine table, you can interconnect all your machines to create a single system. Move the workpiece from the wire EDM machine to the grinding machine or the die-sinking machine without subsequent alignment – quickly and precisely.

Download Brochure

Compact Rotary Indexing Tables with pneumatic Macro chuck. Indexing 0-360° with smallest step 0.001°. Air connections for open/close, as well as turbo-locking/air-blast cleaning.

Download Brochure

Rapid setup is essential if you want to benefit from the material removal capacity and the accuracy offered by modern machines. However, faster machines with increased flushing pressure cause resonance and vibration.

Download Brochure

Supervice solves setting-up problems for the most frequently occurring sizes of workpiece – small to medium-sized. The high repetition accuracy not only allows presetting and fast setup; it also provides a solid foundation for rational series production.
Download Brochure

A wide range of chuck adapters for clamping workpieces on pallets in the Macro, MacroJunior and Mini systems. An ever-growing field of application is the manufacture of precision parts for the medical industry; another is the manufacture of electrodes for Die-sinking EDM.

Download Brochure

The holders have been adapted for modern machines with high flushing pressure. These holders are mainly intended for clamping small to medium-sized workpieces on the zero line of the machine.

Download Brochure

Adapter elements allow machining of complex geometries, even if the machine is not the very latest model. The range includes products for swivelling or height adjustment, as well as plain spacer elements.

Download Brochure

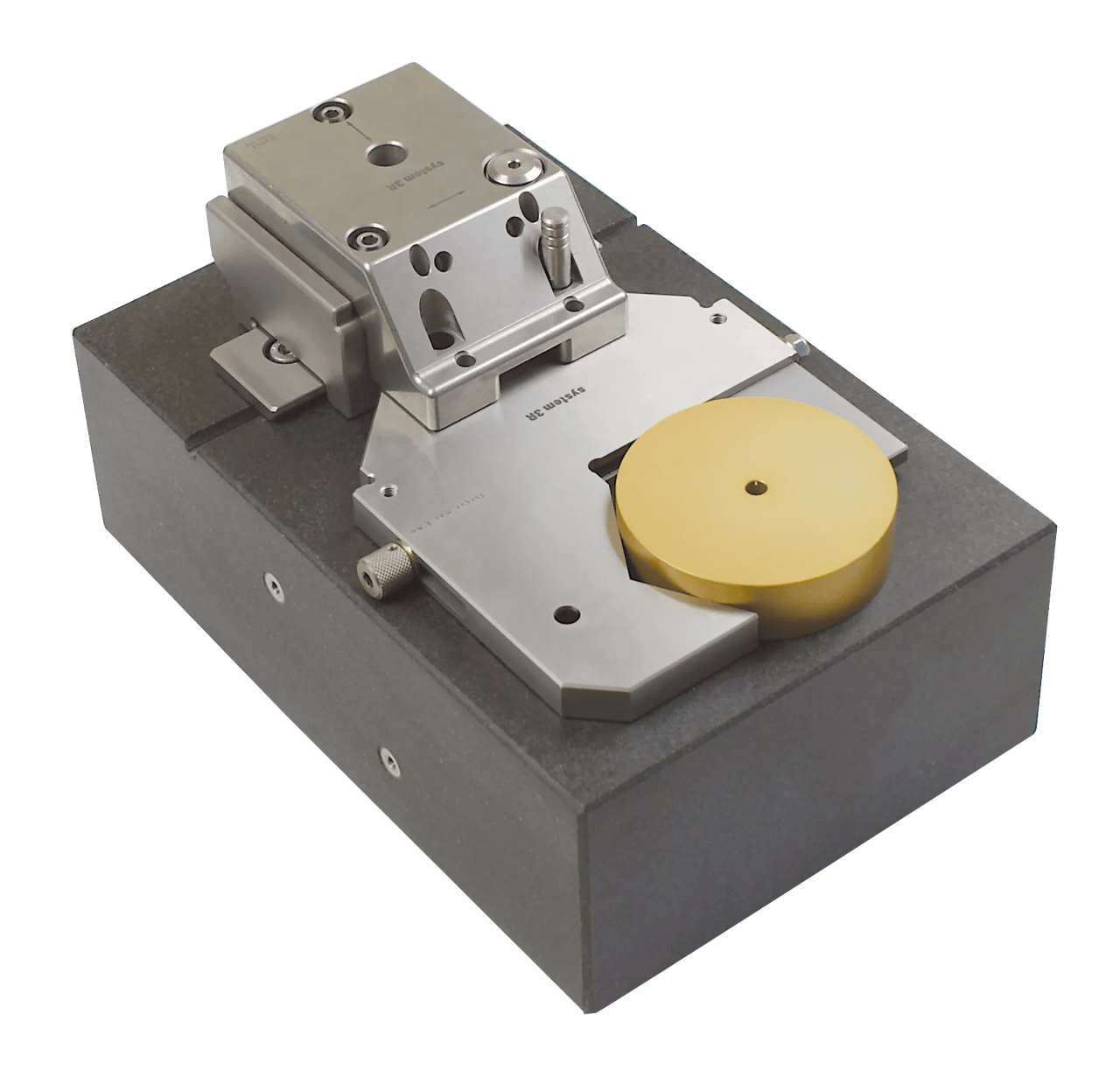

Machine can be used either for active machining or for non-productive setting-up operations on an idle machine. You can optimize machine capacity by presetting away from the machine.

Download Brochure

Extreme accuracy, Matrix feautures low construction height, ultra-precise indexing, a drawbar with a big through hole.

Download Brochure

Frames are large palletising systems adapted to the Wire EDM machine table dimensions.

Download Brochure

The 3Ruler ruler system has been developed for clamping medium-sized and large workpieces in machines with a parallel or U-shaped machine table, as well as for machines with a frame table.

Download Brochure

The EconoRuler have been developed for clamping medium-sized and large work pieces in machines with a parallel or U-shaped machine table, as well as in machines with a frame table.

Download Brochure

Minimal risk of collision with three-point clamping. 3P is equally well suited to rectangular or round workpieces. Clamping takes only a few seconds.

Download Brochure
