Max 600 kg handling weight Long stroke of 2000 mm
The Transformer T3 exist in 4 models. 100/150/200/600 kg. The T3-600 can lift and handle a Total weight of 600 kg including gripper, pallet and workpiece.
Different applications
Please accept all cookies to view the external content.

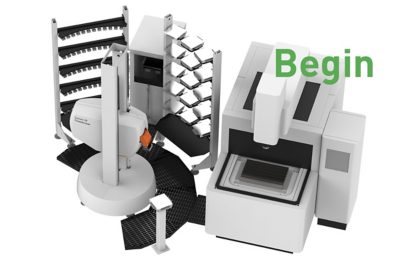

- Begin

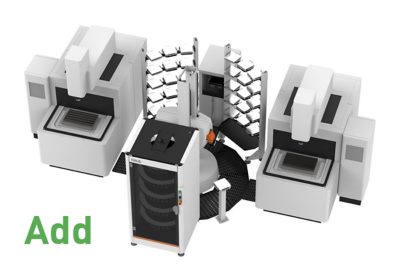

- Add

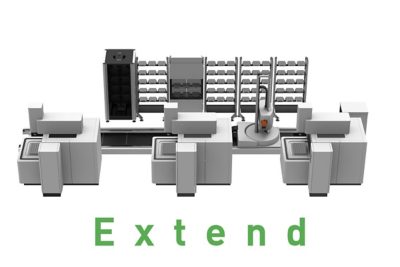

- Extend

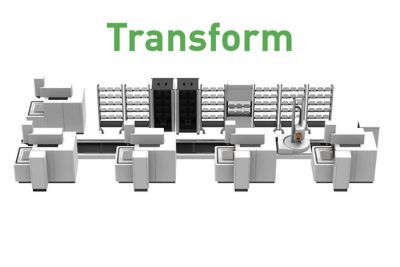

- Transform
1/
Please accept all cookies to view the external content.
600 kg
12 mc
Transformer T3 can serve 12 machines
The Transformer T3 can serve All technologies like EDM,WEDM Milling,Laser,CMM,washing and grinding.
5 sys
Supported tooling systems
The Transformer T3 supports 5 tooling systems in the magazine. There are 20 different tooling Systems which can be prepared for in the magazine.
24/7
Step into 24/automation
Prepare an extra shift and make Sure you produce 24/7. The Transformer T3 can as well be prepared for AMR support, thi to handle logistics from and to the Cell. (Autonomous Mobile Robot)
Configuration
Rotary magazine
| Rotary magazine |
||
| Tooling |
Pos. | Size in mm (in) |
| Dynafix |
4 5 |
320 x 320 (12.6 x 12.6) 290 x 290 (12.6 x 12.6) |
| GPS 240 |
4 5 6 |
320 x 320 (12.6 x 12.6) 290 x 290 (11.4 x 11.4) 260 x 260 (10.2 x 10.2) |
| Erowa UPC |
4 | 320 x 320 (12.6 x 12.6) |
| Macro-Magnum | 8 10 12 |
210 x 210 (8.27 x 8.27) 185 x 185 (7.28 x 7.28) 160 x 160 (6.3 x 6.3) |
| GPS 120 |
12 | 160 x 160 (6.3 x 6.3) |
| Macro | 36 | 65 x 65 (2.56 x 2.56) |
Full rack magazine
| Full rack magazine |
||
| Tooling |
Pos. | Size in mm (in) |
| Macro |
12 |
70 x 200 (2.75 x 12.2) |
| Macro 116 |
6 |
150 x 150 (5.9 x 5.9) |
| Macro-Magnum |
4 5 |
210 x 210 (8.27 x 8.27) 170 x 170 (6.7 x 6.7) |
| Dynafix | 2 1 |
400 x 400 (15.75 x 15.75) 700 x 500 (27.56 x 19.68) |
| GPS 70 |
10 | 95 x 95 (3.74 x 3.74) |
| GPS 240 |
3 2 |
275 x 275 (10.83 x 10.83) 400 x 400 (15.75 x 15.75) |
| Delphin 400x400 |
2 1 |
400 x 400 (15.75 x 15.75) 700 x 500 (27.56 x 19.68) |
Half rack magazine
| Half rack magazine |
||
| Tooling |
Pos. | Size in mm (in) |
| Dynafix |
1 |
480 x 400 (18.9 x 15.75) |
| GPS 240 |
1 |
480 x 400 (18.9 x 15.75) |
| Delphin 400 x 400 |
1 |
480 x 400 (18.9 x 15.75) |
