Introduction
Automated Efficiency. Reliable Output.

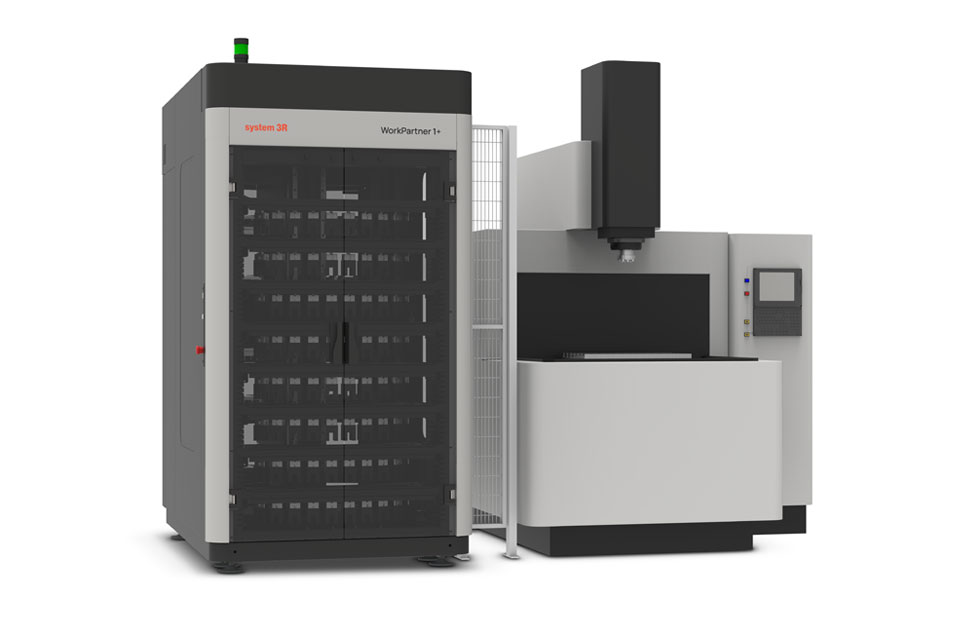

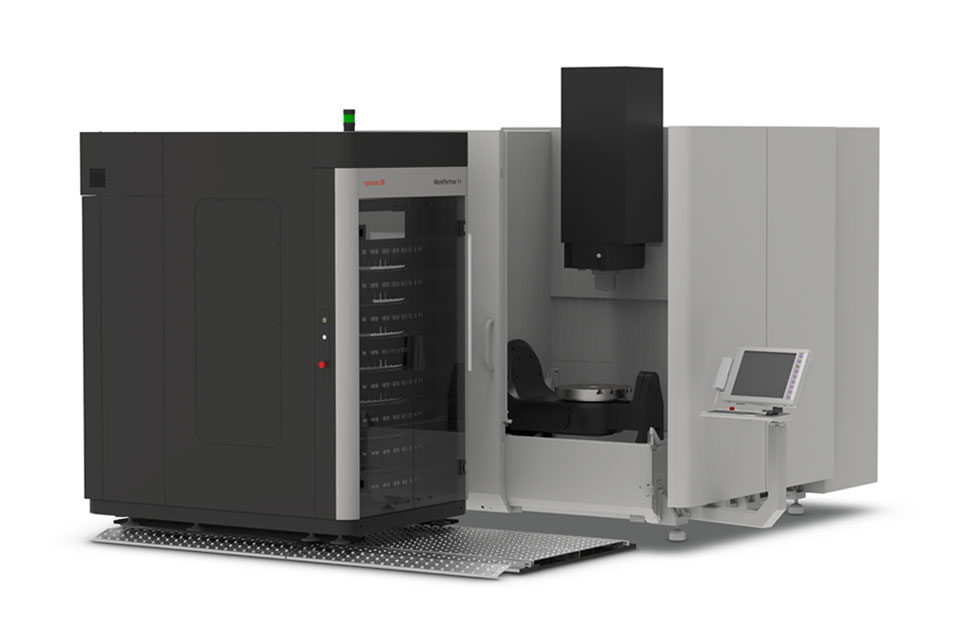

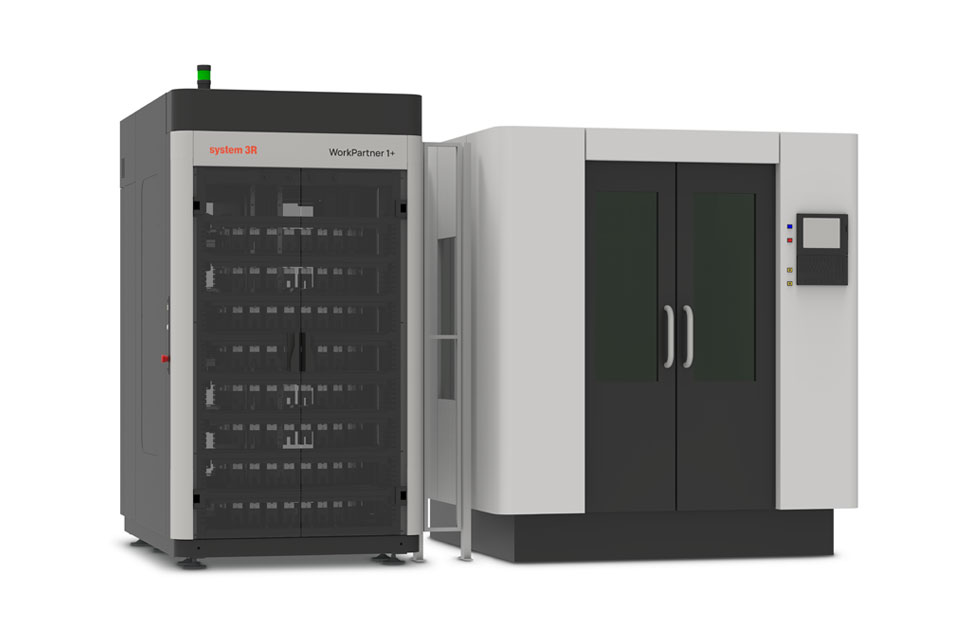

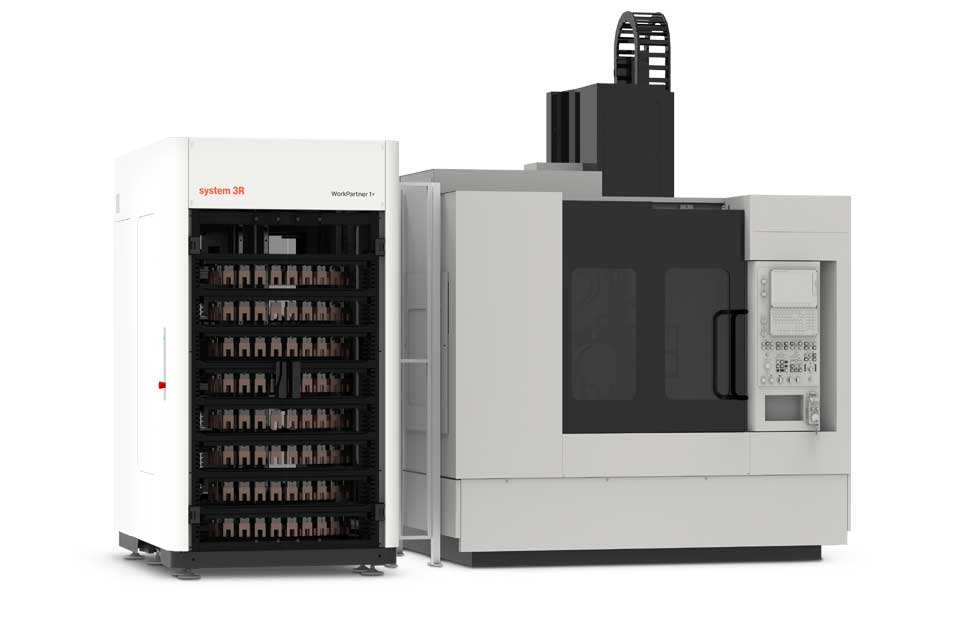

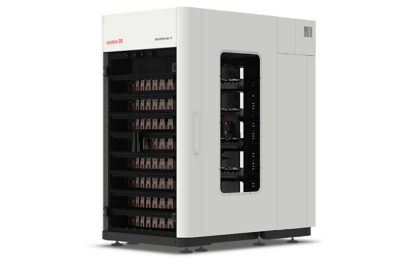

Consistent, flexible, and production-ready — the WorkPartner 1+ is engineered for milling, grinding, die-sinking EDM, wire EDM, and laser applications, performing equally well in one-off manufacturing and series production. Its modular magazine system — available in light, heavy, and rotary configurations — provides exceptional capacity and flexibility, handling workpieces of up to 100 kg. With open architecture and seamless integration with WorkShopManager 5, the WorkPartner 1+ keeps your production running reliably and efficiently — 24/7.
Automation
Highlights
Modular by design, open by principle — the WorkPartner 1+ adapts to your production environment with unmatched flexibility and seamless machine integration.
In numbers
100 kg
max handling weight. Long stroke of 1240 mm
2 mc
can serve two machines
24/7
Step into 24/7 automation
2 sys
Supported tooling systems

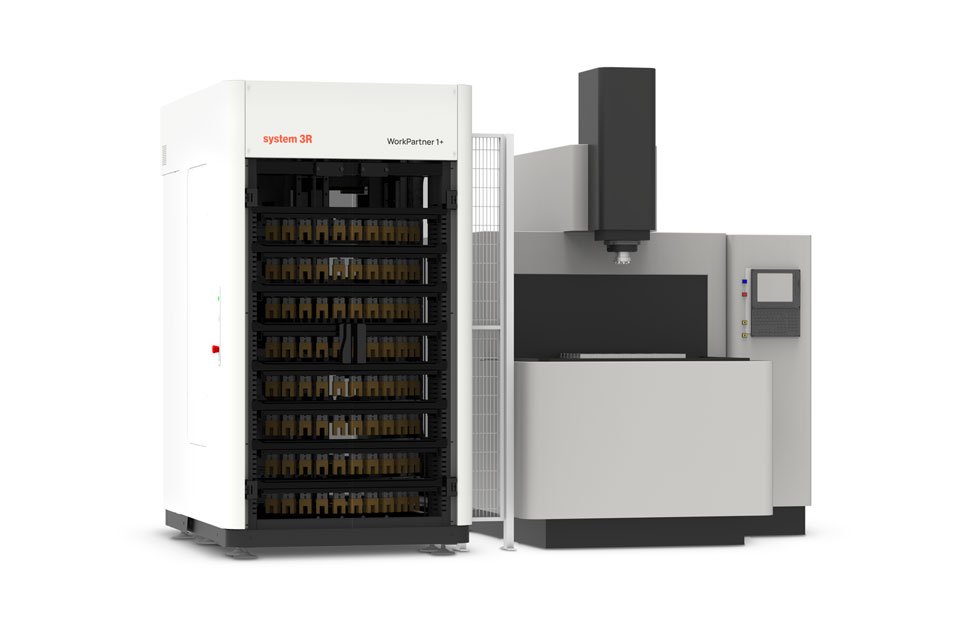

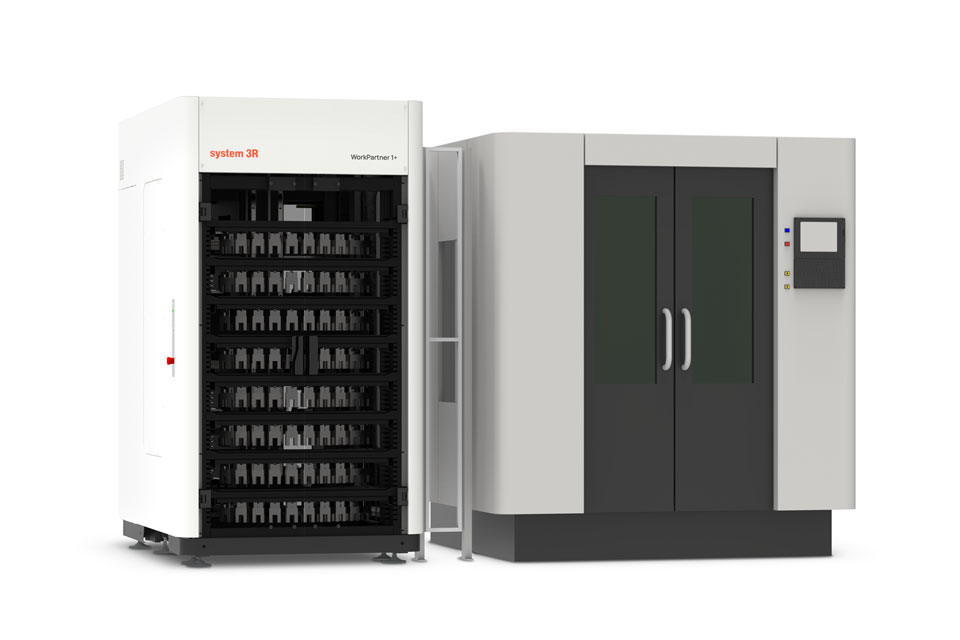

Applications
Precision Without Limits.

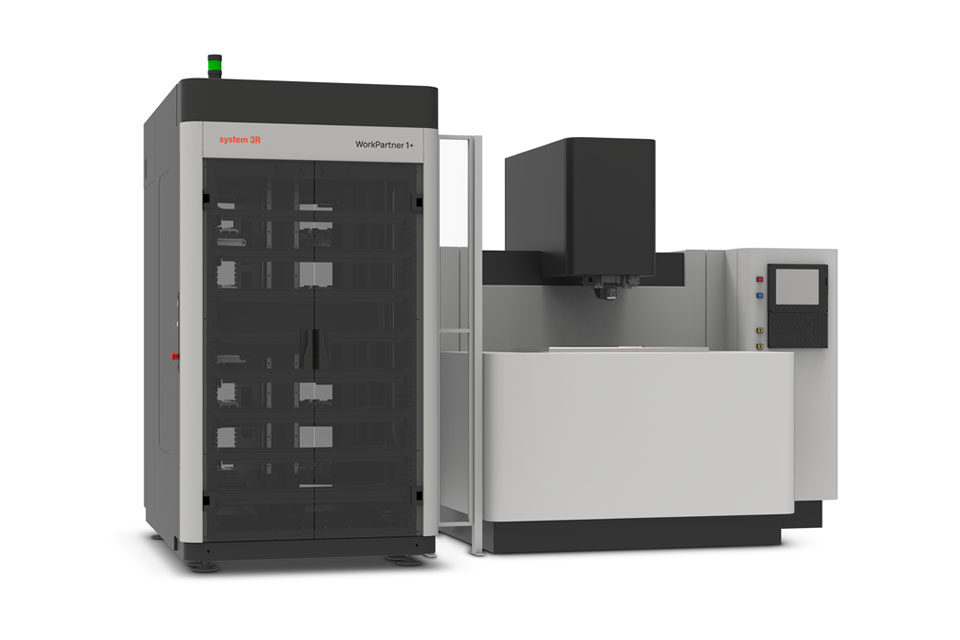

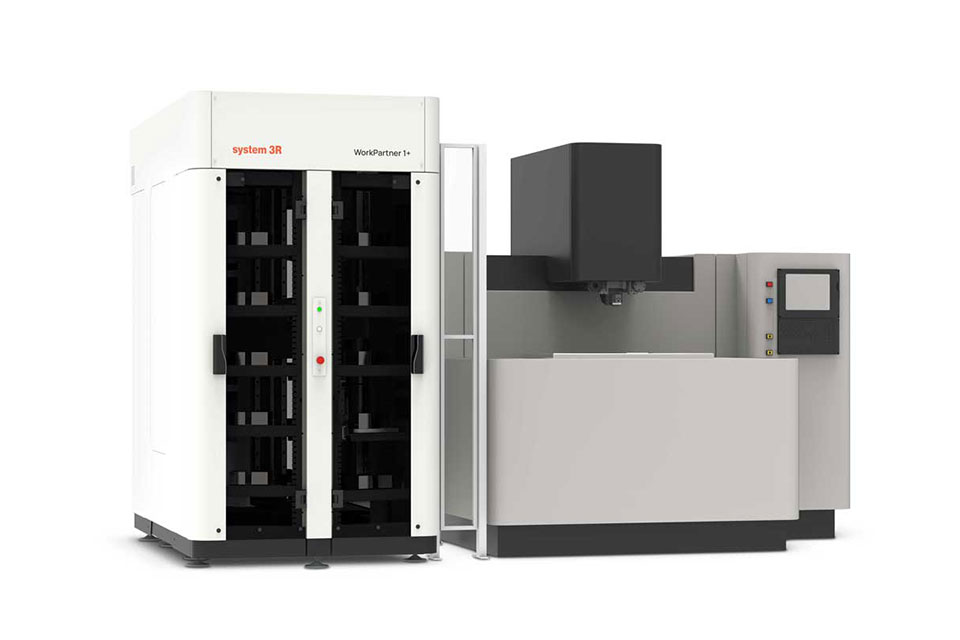

System 3R tooling and automation solutions are engineered for the demanding requirements of wire-cutting EDM — ensuring repeatable positioning accuracy, reliable workpiece clamping, and seamless integration into automated production cells for maximum throughput and consistent part quality.
Options

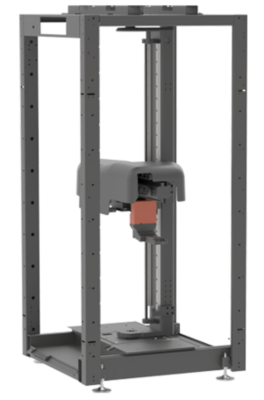

Manipulator unit
Manipulator unit

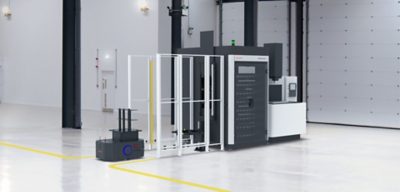

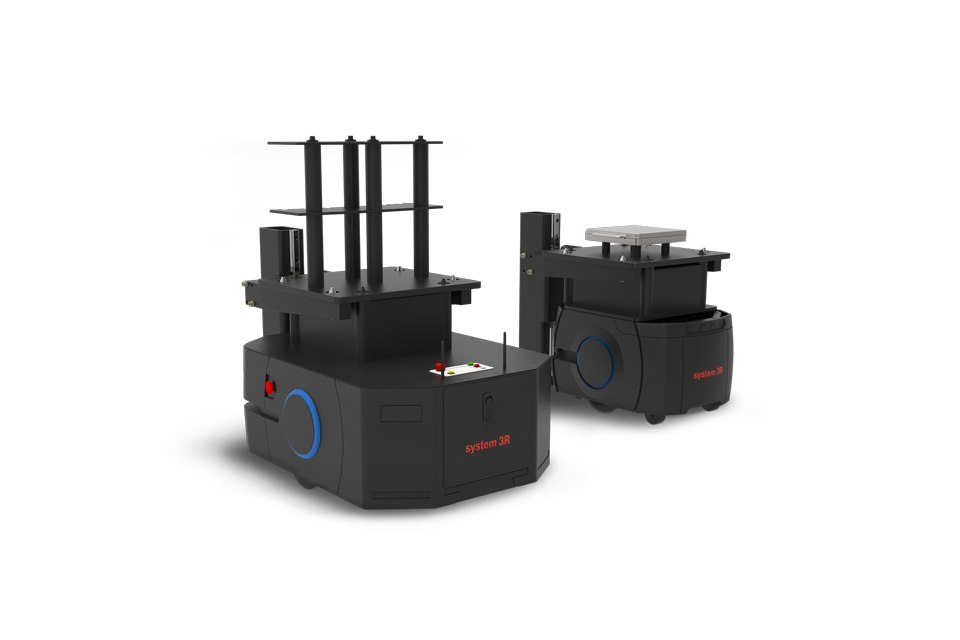

WorkPartner 1+ with AMR integration
Single cell

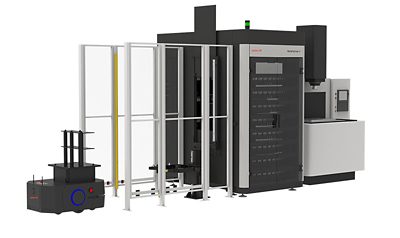

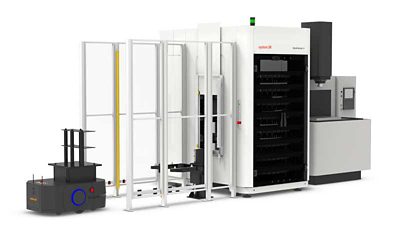

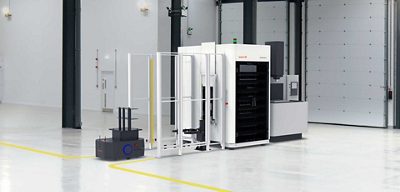

WorkPartner 1+ with EDM machine in integration with AMR unit. AMR with tray and lifter at a loading/unloading station at one of the machine’s sides (where one machining centre only).
Double cell

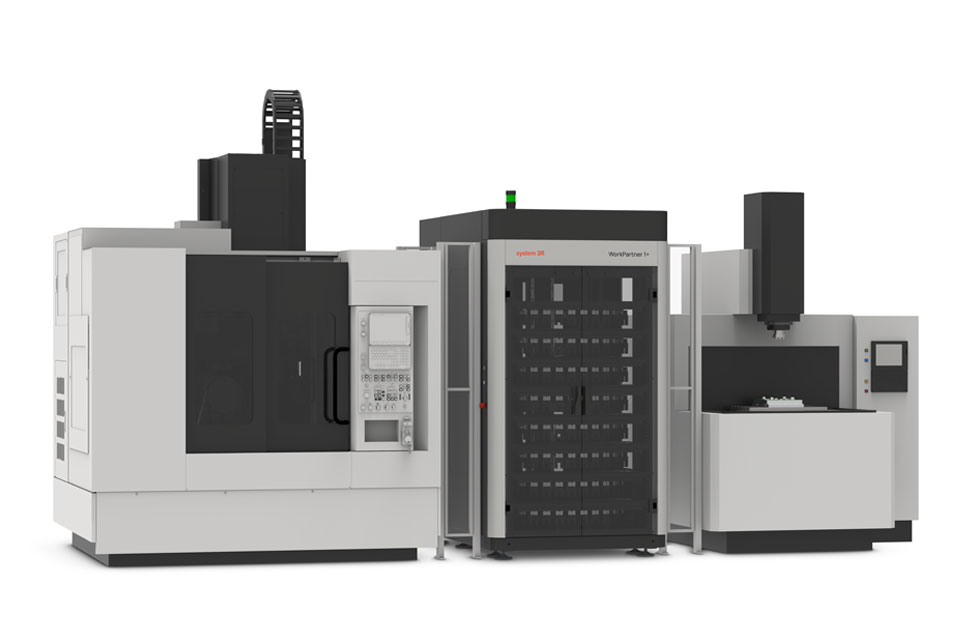

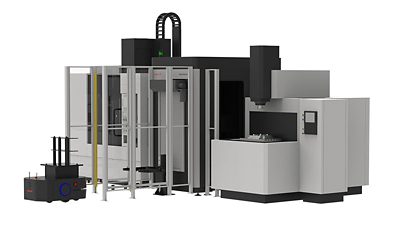

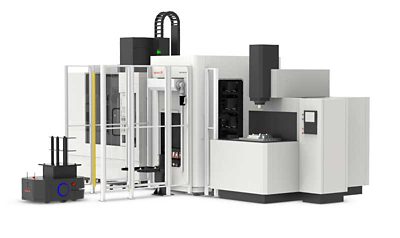

WorkPartner 1+ integrates a Milling and EDM machine with an AMR unit. The AMR, equipped with a tray and lifter, operates at a loading/unloading station that has an automatic door on its magazine. An option on the WPT1+ Light magazine allows the AMR to access loading/unloading of the tray on the lifter when using one or two machines. The robot arm moves out through the light magazine. The number of tooling positions in the light magazine is limited due to this access.
Specifications
WorkPartner1+
- Transfer weight*
- Up to 100 kg (Includes pallet with workpiece)
- Max. X-reach
- 1244 mm (Two magazine version)
- Max. Z-reach
- 1500 mm
- Max. C-rotation
- 330°
- Required air pressure
- 6 ± 1 bar, 150 litres/minute
- Power supply (Japan)
- 3x200 VAC
- Power supply (North America)
- 3x480 VAC
- Power supply (Europe)
- 3x400 VAC
- Power consumption
- Max 20A@3x200 VAC or 20A@3x400VAC
- Frequency
- 50/60 Hz ± 1%
- External fuse
- 20 Ampere, characteristic type D
- Interface
- RS-232, 24 V I/0 (Various) Industrial Field Buses
- Double emergency stop
- Yes

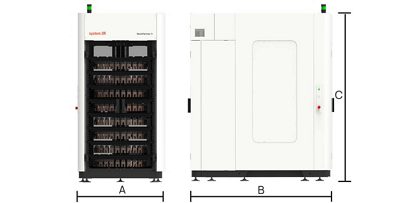

| Configuration | Foot print |
|---|---|
| One light magazine | A = 1310, B = 1646, C = 2460 mm (A = 52, B = 65, C = 97 in) |
| One heavy magazine | A = 1310, B = 2043, C = 2460 mm (A = 52, B = 81, C = 97 in) |
| One rotary magazine | A = 1310, B = 2647, C = 2460 mm (A = 52, B = 104, C = 97 in) |
| Two light magazines | A = 1310, B = 1646, C = 2460 mm (A = 52, B = 65, C = 97 in) |
| Two heavy magazines | A = 1310, B = 2440, C = 2460 mm (A = 52, B = 96, C = 97 in) |
| One light and one heavy magazine | A = 1310, B = 2043, C = 2460 mm (A = 52, B = 81, C = 97 in) |
| One light and one rotary magazine | A = 1310, B = 2647, C = 2460 mm (A = 52, B = 104, C = 97 in) |
| One heavy and one rotary magazine | A = 1310, B = 3044, C = 2460 mm (A = 52, B = 120, C = 97 in) |
| One light and two heavy magazines | A = 1961, B = 2043, C = 2460 mm (A = 77, B = 81, C = 97 in) |
| Three light magazines | A = 1564, B = 1646, C = 2460 mm (A = 62, B = 65, C = 97 in) |
| Three heavy magazines | A = 1961, B = 2440, C = 2460 mm (A = 77, B = 96, C = 97 in) |
| Two light and one heavy magazine | A = 1564, B = 2043, C = 2460 mm (A = 62, B = 81, C = 97 in) |
- Transfer weight*
- Up to 100 kg (220 lbs.) Includes pallet with workpiece
- Max. X-reach
- 1244 mm (49 in). Two magazine version
- Max. Z-reach
- 1500 mm (59 in)
- Max. C-rotation
- 330°
- Required air pressure
- 6 ± 1 bar, 150 litres/minute
- Power supply (Japan)
- 3x200 VAC
- Power supply (North America)
- 3x480 VAC
- Power supply (Europe)
- 3x400 VAC
- Power consumption
- Max 20A@3x200 VAC or 20A@3x400VAC
- Frequency
- 50/60 Hz ± 1%
- External fuse
- 20 Ampere, characteristic type D
- Interface
- RS-232, 24 V I/0 (Various) Industrial Field Buses
- Double emergency stop
- Yes
| Transfer weight* | Up to 100 kg (220 lbs.) Includes pallet with workpiece |
|---|---|
| Max. X-reach | 1244 mm (49 in). Two magazine version |
| Max. Z-reach | 1500 mm (59 in) |
| Max. C-rotation | 330° |
| Required air pressure | 6 ± 1 bar, 150 litres/minute |
| Power supply (Japan) | 3x200 VAC |
| Power supply (North America) | 3x480 VAC |
| Power supply (Europe) | 3x400 VAC |
| Power consumption | Max 20A@3x200 VAC or 20A@3x400VAC |
| Frequency | 50/60 Hz ± 1% |
| External fuse | 20 Ampere, characteristic type D |
| Interface | RS-232, 24 V I/0 (Various) Industrial Field Buses |
| Double emergency stop | Yes |

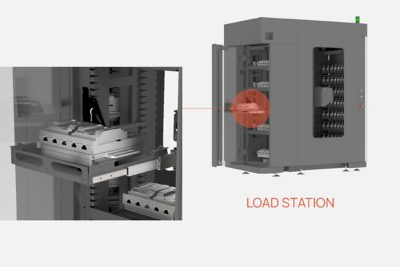

- Load station*
- Yes
- Drain station*
- Yes
- ID-system with or without automatic scanning
- Yes
- Internal magazine lighting (LED)
- Yes

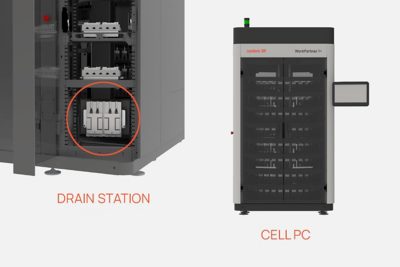

- Cell PC with WSM software
- Yes
- Customized color for outer covers
- Yes
- Manual rail
- Yes
| Load station* | Yes |
|---|---|
| Drain station* | Yes |
| ID-system with or without automatic scanning | Yes |
| Internal magazine lighting (LED) | Yes |
| Cell PC with WSM software | Yes |
| Customized color for outer covers | Yes |
| Manual rail | Yes |

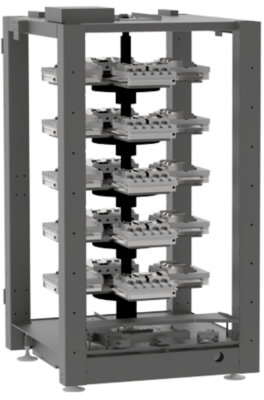

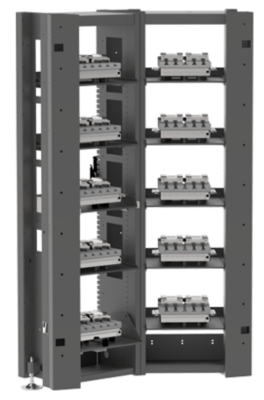

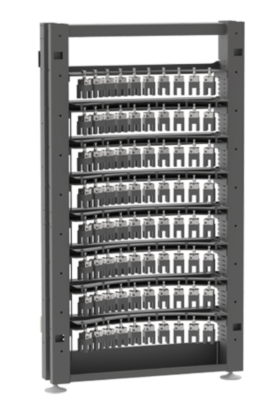

There are three types of magazine, light (L), heavy (H) and rotary (R).
Up to three magazines can be connected to the changer unit in any combination whatsoever.
- One magazine: L , H or R
- Two magazines: L + L, H + H, L + H, H + R or L + R.
- Three magazines: LHH, LLL, HHH & LHL
Note: Each individual magazine is intended for one and the same pallet system.
The magazine’s capacity is determined entirely by the shape and size of the workpieces. The tables below show only “guideline values” for each pallet system carrying workpieces of a “standard” size and shape.
| Pallet systems in the LIGHT magazine | No of levels | No of pallets/level | Total |
|---|---|---|---|
| Macro 54/70 | 8 | 10 | 80 |
| Macro PT (70x70) | 8 | 10 | 80 |
| Macro 116 | 8 | 6 | 48 |
| Macro Chip Guard | 8 | 6 | 48 |
| Matrix 110 | 8 | 6 | 48 |
| Matrix 142 | 8 | 5 | 25 |
| MacroMagnum 156 | 8 | 5 | 25 |
| GPS 70 | 8 | 10 | 80 |
| GPS 120 | 8 | 6 | 48 |
| ITS50 | 8 | 10 | 80 |
| ITS72 | 8 | 9 | 72 |
| ITS115 | 8 | 6 | 48 |
| ITS148 | 8 | 5 | 25 |
| Pallet systems in the HEAVY magazine | No of levels | No of pallets/level | Total |
|---|---|---|---|
| MacroMagnum 156 | 5 | 4 | 20 |
| Matrix 110 | 5 | 4 | 20 |
| Matrix 142 | 5 | 4 | 20 |
| GPS 240 | 5 | 2 | 10 |
| Dynafix 280/350 | 5 | 2 | 10 |
| Delphin Short (Fork/leveling head) | 5 | 2 | 10 |
| ITS148 | 5 | 4 | 20 |
| UPC Fork/RCS | 5 | 2 | 10 |
| Pallet systems in the ROTARY magazine | No of levels | No of pallets/level | Total |
|---|---|---|---|
| MacroMagnum 156 | 5 | 4 | 20 |
| Matrix 110 | 5 | 4 | 20 |
| Matrix 142 | 5 | 4 | 20 |
| GPS 240 | 5 | 2 | 10 |
| Dynafix 280/350 | 5 | 2 | 10 |
| Delphin Short (Fork/leveling head) | 5 | 2 | 10 |
| ITS148 | 5 | 4 | 20 |
| UPC Fork/RCS | 5 | 2 | 10 |
| Matrix 142 | 5 | 12 | 60 |
| Matrix 110 | 5 | 12 | 60 |
| Macro 116 | 5 | 12 | 60 |
| Macro 70 | 7 | 30 | 210 |
| Macro 54 | 7 | 36 | 252 |
Note: When carrying out wire EDM with Macro, MacroTwin or Unimatic, solutions are customer specific – the number of positions per rack is entirely determined by the nature of the devices securing the workpiece and not by the pallet system.
Software
Software
Work Shop Manager 5

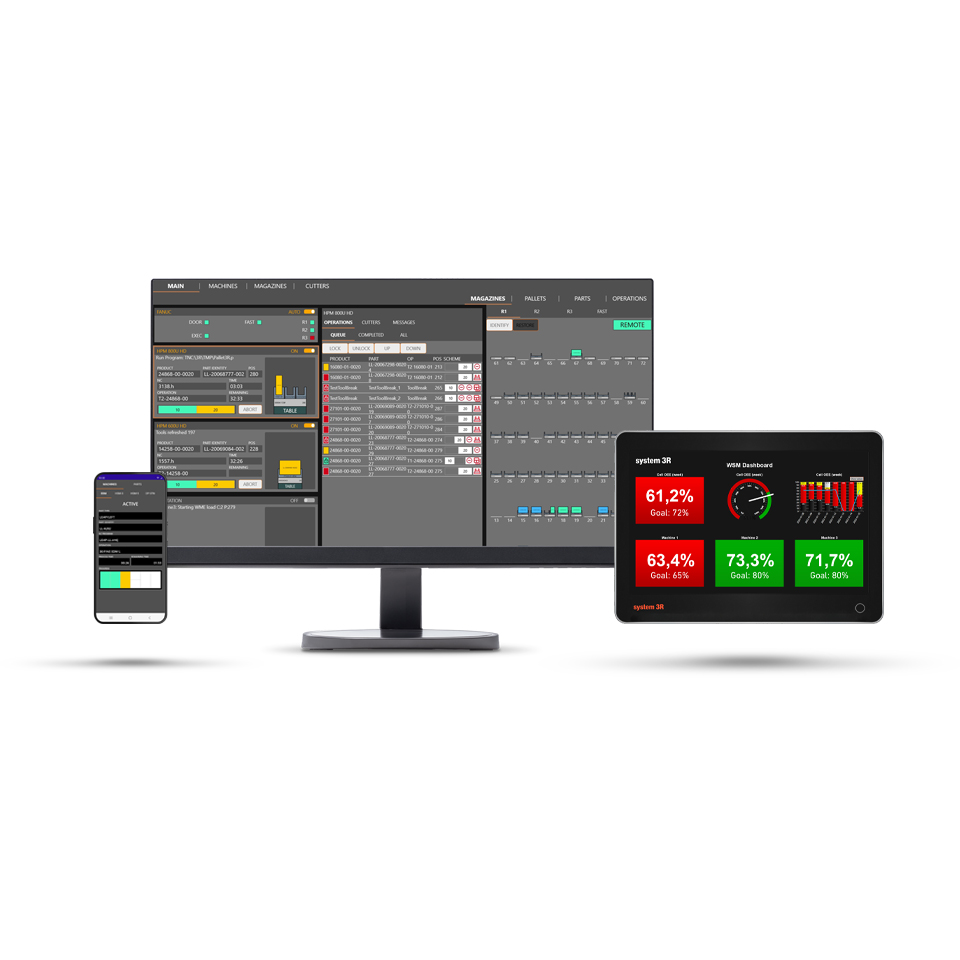

One platform for production: orders, scheduling, automation and monitoring.
