不同的產品應用
線割機應用

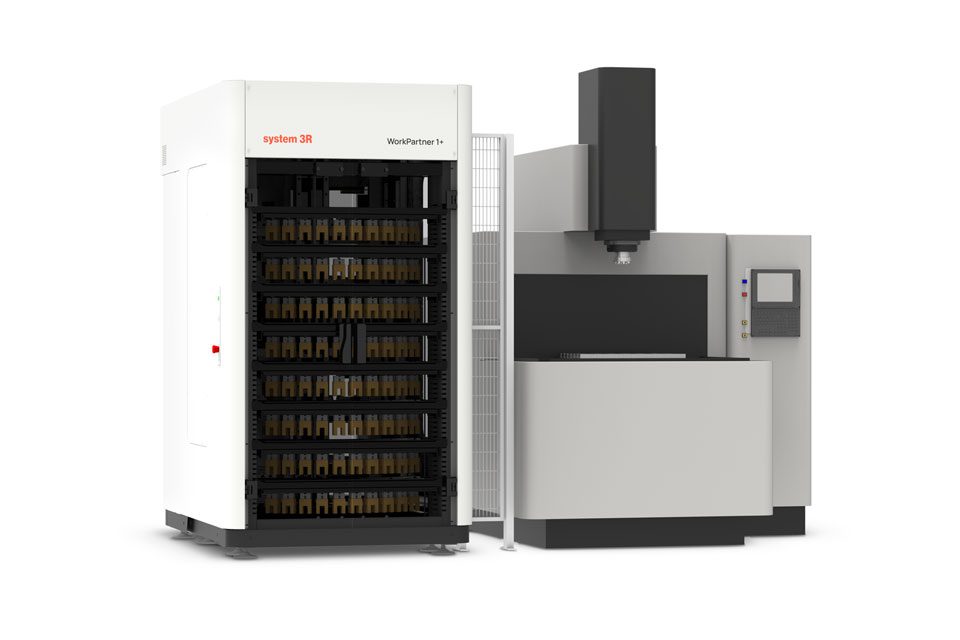

放電加工機應用程式
雷射應用
銑床應用
前裝式銑床機器的導軌應用
應用於放電加工+ 銑床
- Wire-cutting EDM (wireEDM) application
- Wire-cutting EDM (wireEDM) application
- Lazer application
- Milling application
- Rail application for front loaded milling machines
- Mixed technologies EDM and Mill
1/
規格
Pallet systems in the LIGHT magazine
No of levels
No of pallets/level
Total
| Pallet systems in the LIGHT magazine | No of levels | No of pallets/level | Total |
| Macro 54/70 | 8 | 10 | 80 |
| Macro PT (70x70) | 8 | 10 | 80 |
| Macro 116 | 8 | 6 | 48 |
| Macro Chip Guard | 8 | 6 | 48 |
| Matrix 110 | 8 | 6 | 48 |
| Matrix 142 | 5 | 5 | 25 |
| MacroMagnum 156 | 5 | 5 | 25 |
| GPS 70 | 8 | 10 | 80 |
| GPS 120 | 8 | 6 | 48 |
| ITS50 | 8 | 10 | 80 |
| ITS72 | 8 | 9 | 72 |
| ITS115 | 8 | 6 | 48 |
| ITS148 | 5 | 5 | 25 |
Pallet systems in the HEAVY magazine
No of levels
No of pallets/level
Total
| Pallet systems in the HEAVY magazine | No of levels | No of pallets/level | Total |
| MacroMagnum 156 | 5 |
4 |
20 |
| Matrix 110 | 5 |
4 | 20 |
| Matrix 142 | 5 | 4 | 20 |
| GPS 240 |
5 | 2 | 10 |
| Dynafix 280/350 | 5 | 2 | 10 |
| ITS148 | 5 | 4 | 20 |
| UPC Fork/RCS |
5 | 2 | 10 |
Pallet systems in the ROTARY magazine
No of levels
No of pallets/level
Total
| Pallet systems in the ROTARY magazine | No of levels | No of pallets/level | Total |
| Macro 54 |
7 | 36 | 252 |
| Macro 70 | 7 | 30 | 210 |
| Macro 116 | 5 | 12 | 60 |
| Matrix 110 | 5 | 12 | 60 |
| Matrix 142 | 5 | 12 | 60 |
| MacroMagnum 156 | 5 | 12 | 60 |
| GPS 70 | 7 | 20 | 80 |
| GPS 120 | 8 | 6 | 48 |
| GPS 240 | 5 | 6 | 30 |
| Dynafix 280 | 5 | 5 | 25 |
| ITS50 | 7 | 36 | 252 |
| ITS148 | 5 | 12 | 60 |
| UPC Fork/RCS | 5 | 4 | 20 |
備註：使用 Macro、MacroTwin 或 Unimatic 來執行線切割機時，解決方案是針對客戶的 - 每個層架的位置數量完全由工件的性質決定，而不是由托盤系統。
